Advanced 3D scanning for industrial automation
Precision matters in industrial automation. Whether you need to capture a static scene in detail or track objects in motion, the 3S Series 3D sensors give you superior image quality and high reliability.
The key to success is the structured light that enables precise reconstruction of the shape and depth of objects.
3S Series - What makes it special?

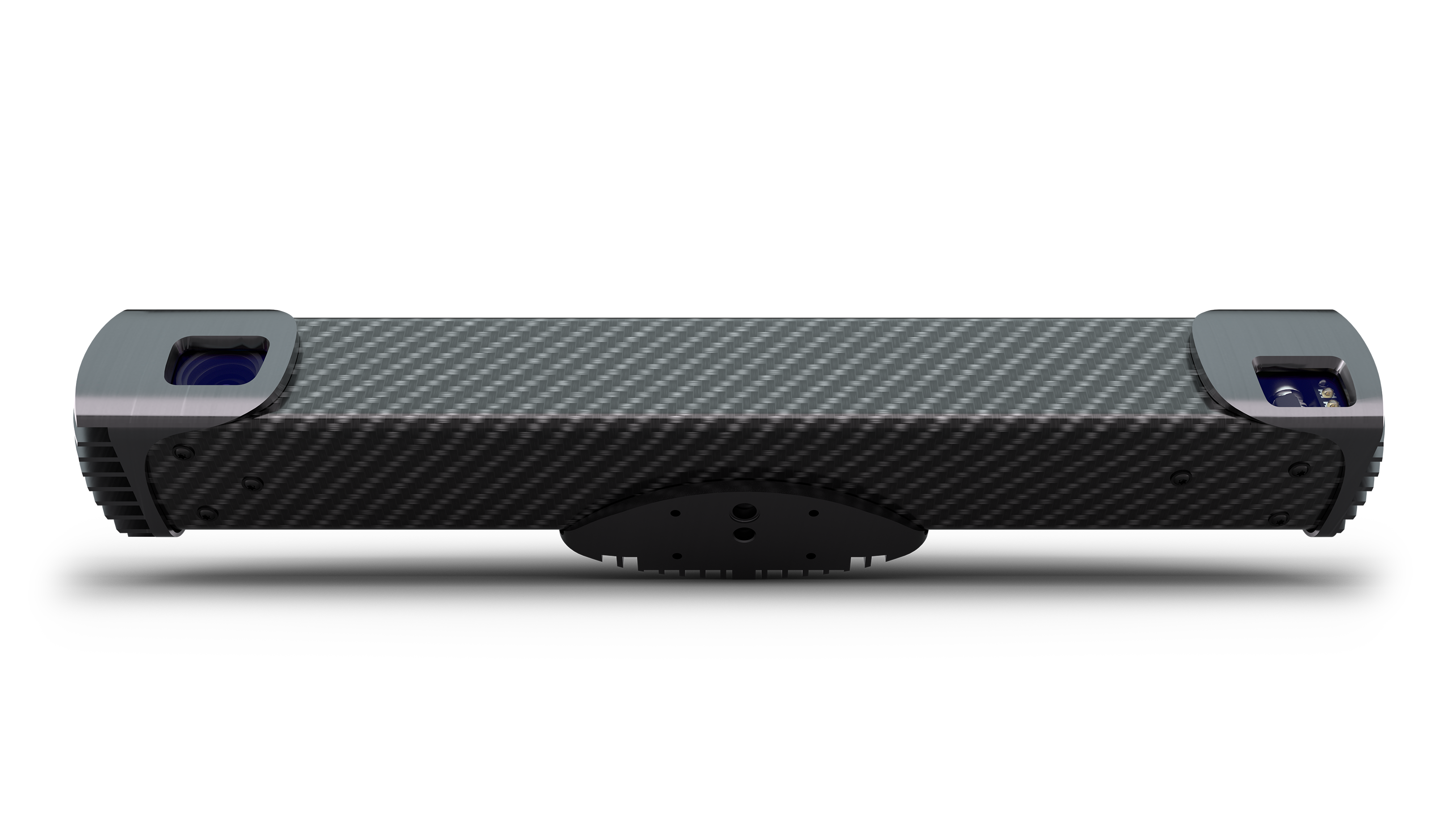

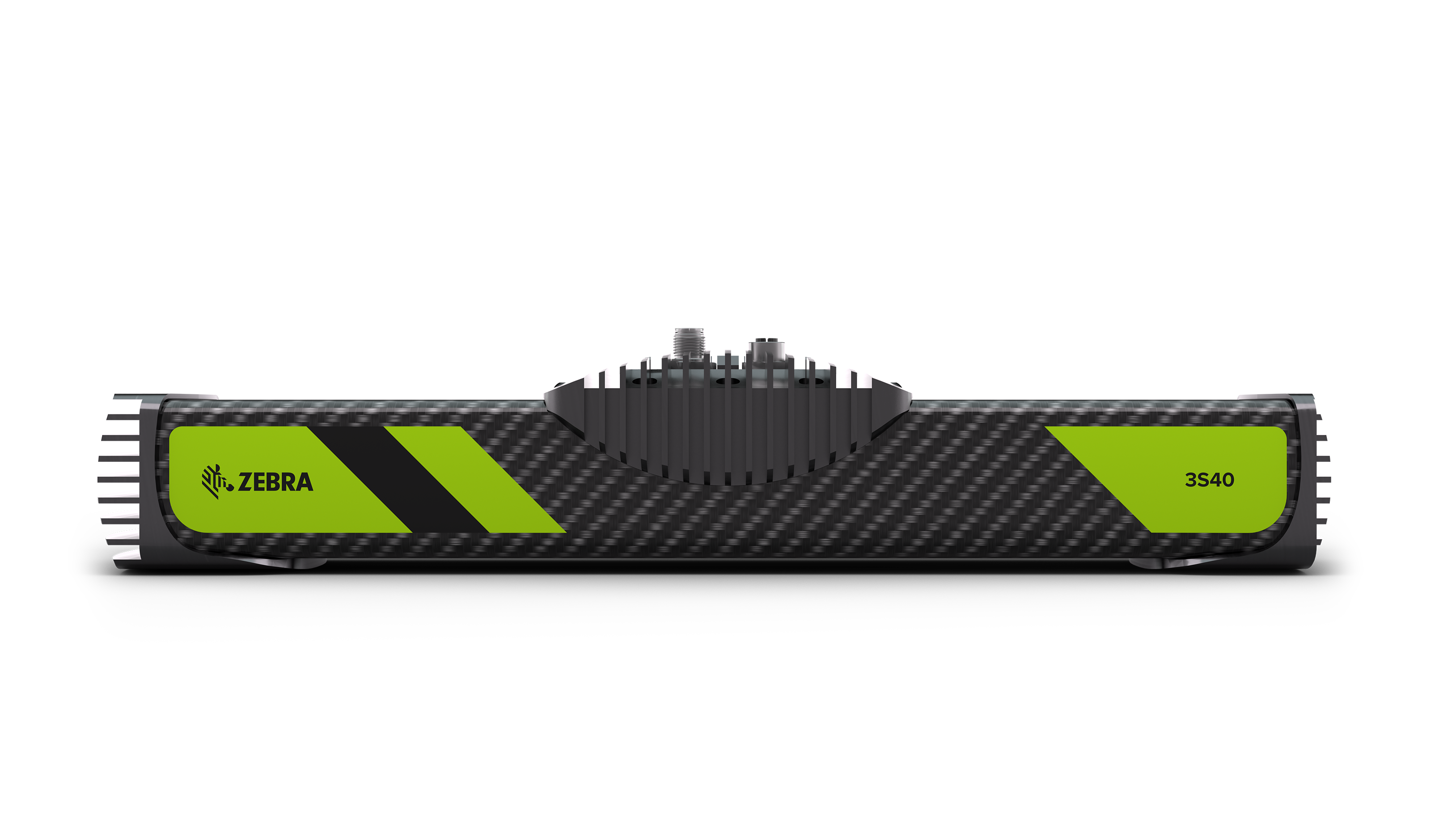

3S40 - High Accuracy Static Scanning
If you need the most detailed imaging of stationary objects, the 3S40 is the ideal choice. Thanks to its structured light, it can accurately reconstruct even the smallest details and capture fine surface textures.
- Structured light: Provides detailed 3D reconstruction of static objects.
- High accuracy and stability: Perfect for quality measurement and control.
- Optimized for fixed applications: great for inspection stations and metrology.

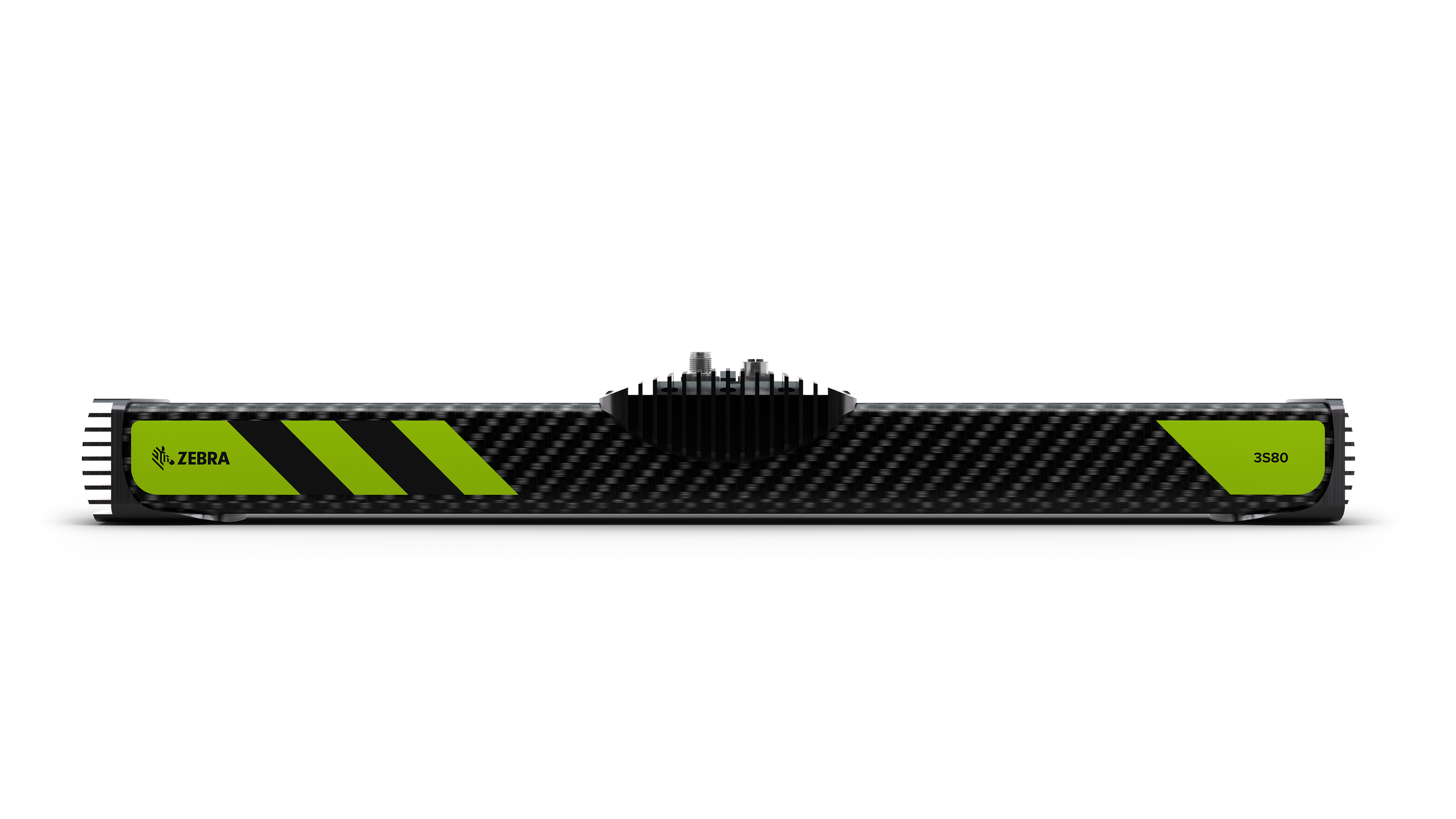

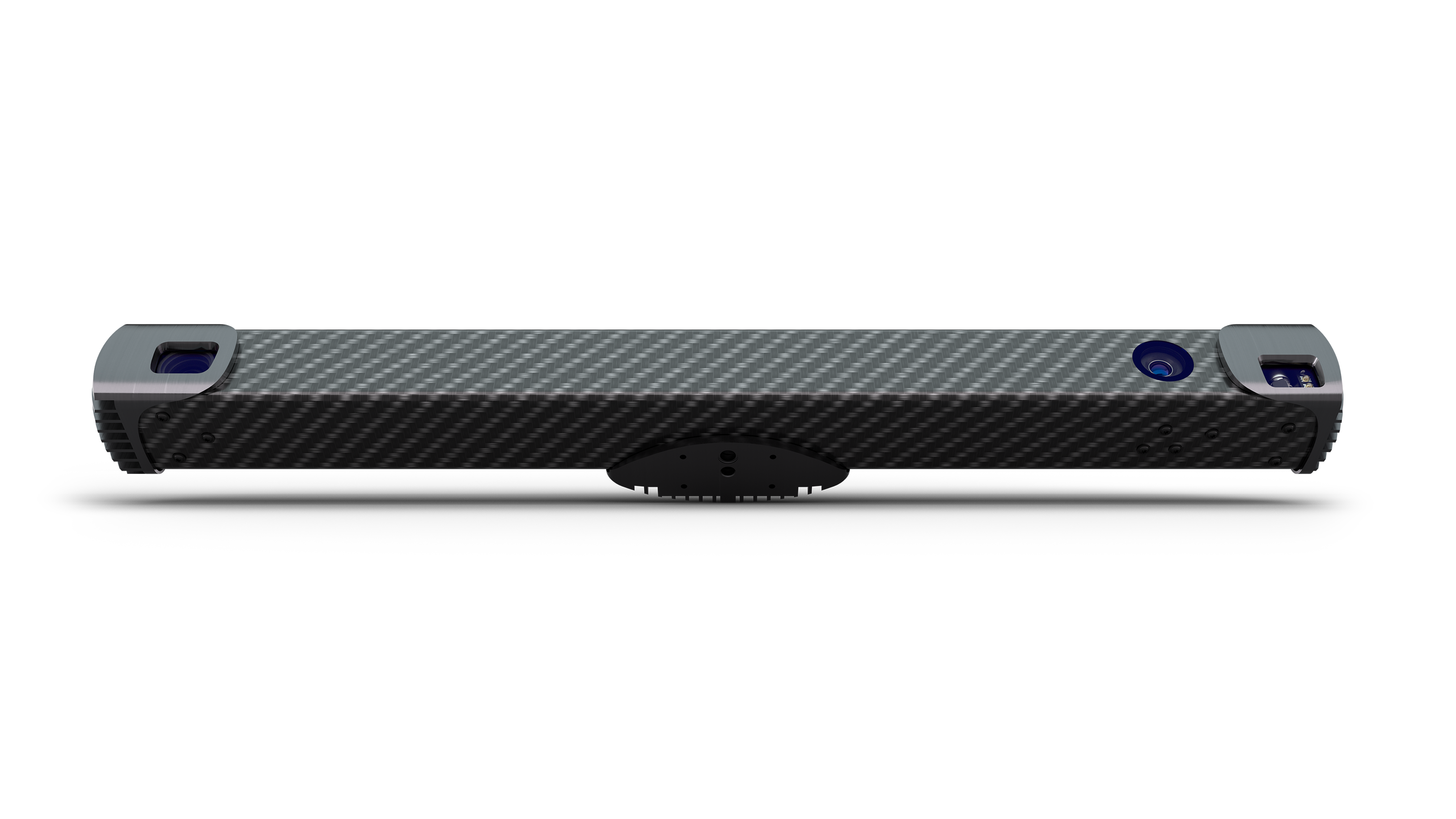

3S80 - Scanning Moving Objects with Parallel Structured Light and CMOS Sensor
The 3S80 is designed for applications where objects move and need to be captured in real time. With parallel structured light and a highly sensitive CMOS sensor, it can scan at high speed and without distortion.
- Parallel structured light: Accurately capture dynamic scenes and minimize distortion.
- High resolution CMOS sensor: Enables fast capture of moving objects without loss of detail.
- Ideal for automated manufacturing processes: perfect for tracking and controlling moving objects in industrial applications.
Where are the 3S series scanners used?
1. Quality control in manufacturing
Accurate 3D scanning allows you to detect defective parts, deviations from specifications or surface defects.
- The 3S40 is ideal for static inspection of finished products where high accuracy is required.
- The 3S80 enables continuous inspection during production line movement.
2. Robotic guidance and automation
Scanners help robots recognize and grasp objects correctly.
- The 3S40 scans objects in a stationary environment, for example for pick & place operations.
- The 3S80 can track moving objects, for example when handling parts on a conveyor belt.
3. Measurement and metrology
The high accuracy of the scanners enables detailed measurement of product dimensions and shapes.
- The 3S40 is suitable for precision metrology applications where accurate comparison with a CAD model is required.
- The 3S80 is used in applications where dimensions need to be measured on the move.
4. Logistics and object identification
When identifying parcels, pallets or other objects, 3D scanners provide accurate shape and dimensional analysis.
- The 3S40 assists in scanning solid packages to optimize storage.
- The 3S80 tracks moving shipments on conveyor belts.
The 3S Series sensors bring accuracy, speed and flexibility to a wide range of industrial applications. Whether you need high-resolution static scanning or tracking moving objects, the solution exists.
Interested in more information or want to see how scanners could help your operation? Contact us - we'd be happy to advise or help you find the optimal solution for your application.
Team AMV
